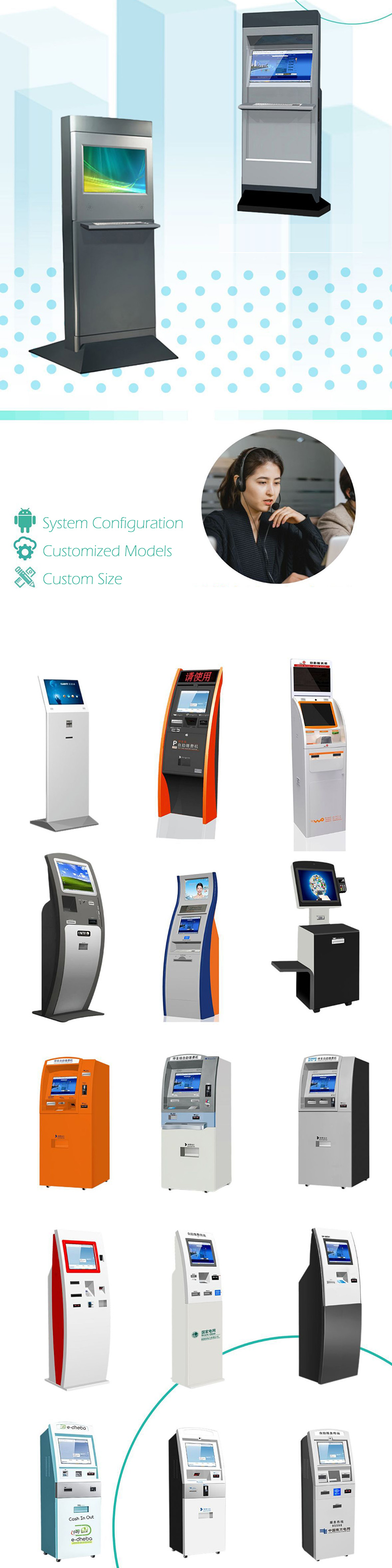

Bank self-service inquiry payment machine touch all-in-one machine,Self service payment terminal, wall mounted touch all-in-one machine
* MOQ is 1 unit for both our standard LCD product and OEM/ODM product.
| Model NO. | Interactive touch kiosk |
| Certification | CE / FCC/ RoHS / ISO9001 |
| Supplier Type | Original Manufacturer ODM OEM |
| Brightness | 2500 Nits |
| Panel | Auo, Boe, LG |
| Power Supply | 110-240V 50Hz/60Hz |
| Enclosure | All Steel Made |
| Display | TFT-LCD |
| Material Features | Anti-Vandal |
| Color | Optional |
| Data Collector Operating System | Core I5 to I7, 4G to 11 Generation |
| Data Collector Signal Transmission | Wireless |
| Queue System Type | Queuing |
| Cooling System | Fan Cooling and AC Cooling System OEM |
| Media Available | Datasheet, Photo, Eda/CAD Models |
| Trading | Fob-CIF-Esw |
| Transport Package | Wooden Box |
| Specification | Customize 21.5 outdoor, fan cooling self service |
| Trademark | LCDKIOSK |
| Origin | China |
| HS Code | 8471494000 |
| Production Capacity | 50000 |
Basic Configuration | ||
Components | Specification | |
Computer | Industrial Mainboard: CPU: Intel Support DDR3 1333/1066MHz; Single DC 12V Power Input/ATX; OS Support:Microsoft Windows (64bit and 32bit); | |
Monitor | LCD : 10.4, 15, 17 or 19 optional | |
Ticket Printer | Fast USB or Serial interface Prints up to 350 mm/second Autocutter-equipped Prints/cuts stock up to 250 g/m² Sleep mode ideal for remote, battery operation charged by solar cells Wide voltage range option allows operation from 10-36 volts, ideal for use on vehicular electrical systems.Paper Width [mm] 4960 mm Resolution [dpi] 203 dpi | |
Coin acceptor | Accept :10 Agora,1/2NIS,1NIS,2NIS,5NIS,10NIS; no escrow: | |
Coin dispenser/Hopper | Suck-in motorized card reader, magcard(Tr 1/2/3) compliant with ISO and compatibility standard and IC Dispensing Change with 5,1,0.5,0.1 NIS; 4 hoppers ; capacity: 500coins each hopper; no escrow: | |
Card Reader | optional | |
Contactless card reader | Dimensions:98 mm (L) x 65 mm (W) x 12.8 mm (H) Interface:USB Full Speed Operating Distance:Up to 50 mm (depends on the tag type) Smart Card Interface Support:ISO14443 Type A & B, FeliCa, 4 types of NFC (ISO/IEC18092) tags Operating System Support: Window series, Linux, Mac, Android 3.1 and above | |
Power supply | Custom made power supply unit low wattage | |
Enclosure | In-door antivandal case; Durable steel frame, powder coated; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free; Water- Proof; 4 Fans for aeration and down temperature; Power supply inside; Open door sensor is connect with all the doors and controlled by the PC via RS232 connection 2mm thick galvanised / zinc-plated steel. the complete kiosk can be bolted on the ground Single separated compartment safty metal box for the cash in and cash out device with electronics combination locks with passwords. Reset/Power on lock on lateral or back side; Front and rear side access for maintainence and services High quality lock. has metal bars to hold it in open position (manually fixed). | |
Other Optional : UPS, Video Camera, Alarm System, Barcode Scanner, Metal Keyboard, Cash Acceptor, etc. | ||
At lcdkiosk, Our goal is to make your experience as smooth and hassle-free as possible, ensuring that you receive a high-quality product that meets your expectations. From project evaluation to after-sales service, we ensure that each step is carefully executed to meet your requirements. Here are the steps to follow:
Step 1
Project Evaluation (1-2 days)
The first step is to evaluate your project requirements and expectations. We have a dedicated team that will work closely with you to understand your needs, answer any questions you may have, and provide expert guidance. This evaluation process typically takes 1-2 days to gather all the necessary information.
Step 2
Sample Production (7-30 days)
Once the project evaluation is complete and payment is received, our skilled production team will manufacture samples according to your specifications. This process may take anywhere from 7 to 30 days, depending on the complexity of the product and the availability of materials. We prioritize maintaining high-quality standards during this phase.
Step 3
Confirm the Product and Pack It (1-2 days)
After the sample is made, we support inspection. We encourage you to check the samples thoroughly, Once the product design and quality meet your expectations, we will proceed with packing the final order. This step generally takes 1-2 days to ensure that everything is securely packaged.
Step 4
Shipping (7-45 days)
When the product is packed and ready for shipment, We offer a variety of shipping options to meet your needs. If you’re in a hurry, air shipping is the fastest but more expensive option, taking just 7-10 days. Sea shipping is the most economical but takes longer, at 30-45 days. We will provide you with a more accurate estimate based on your specific destination and any customs procedures involved.
Step 5
After Service
Our commitment doesn’t end with the delivery of your order. We value our relationship with customers and offer comprehensive after-sales service. If you encounter any issues or have any questions regarding the product, our dedicated support team is ready to assist you. We prioritize customer satisfaction and strive to address any concerns promptly and effectively.
