Self Service Kiosk
Self Service Payment Kiosk
1. TC-TOUCH-K12 15.6 inch POS machine POS systems POS hardware.
2. This product is equipped with 80mm thermal label printer.
3. 21.5 " Payment kiosks LED TFT(1366*768) Optional 1920*1080P" Capactive touch screen wall-mounted cash register Self-service Ordering kiosk hardware.
4. A point of sale system can be used for personal store cash register, Self-service Ordering kiosk , Self-service kiosk. And so on.
5. TC-TOUCH-K12 all in one cash register Pos machine systems. Optional: "MSR,WIFI,Speaker,RFID (only read/ read+write)" Desktop/ Wall-mounted,USB and COM ports are optional.

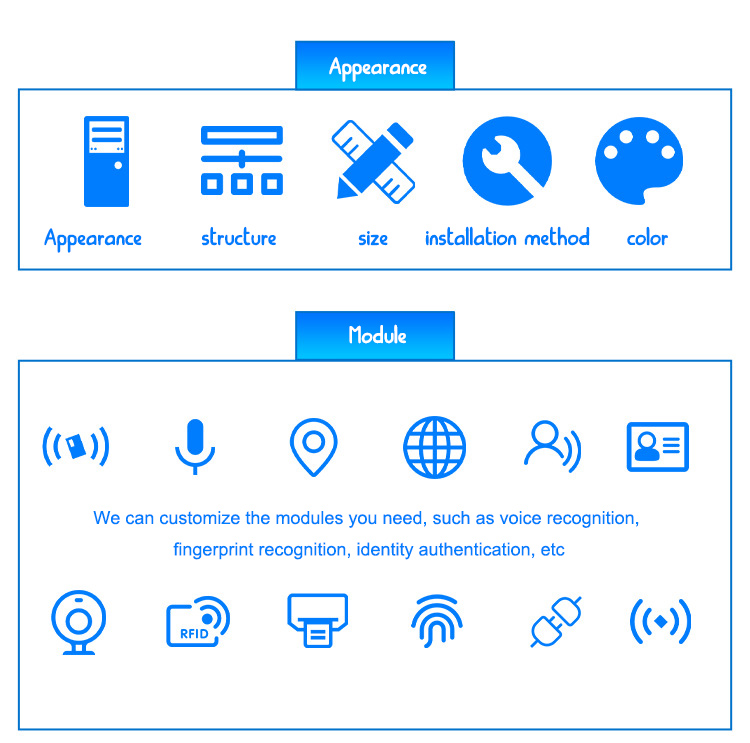

6.This product supports OEM/ODM customization.Delivery is fast and stable.Rapid production mold customization
7.After-sales service to solve some of your questions and practical problems

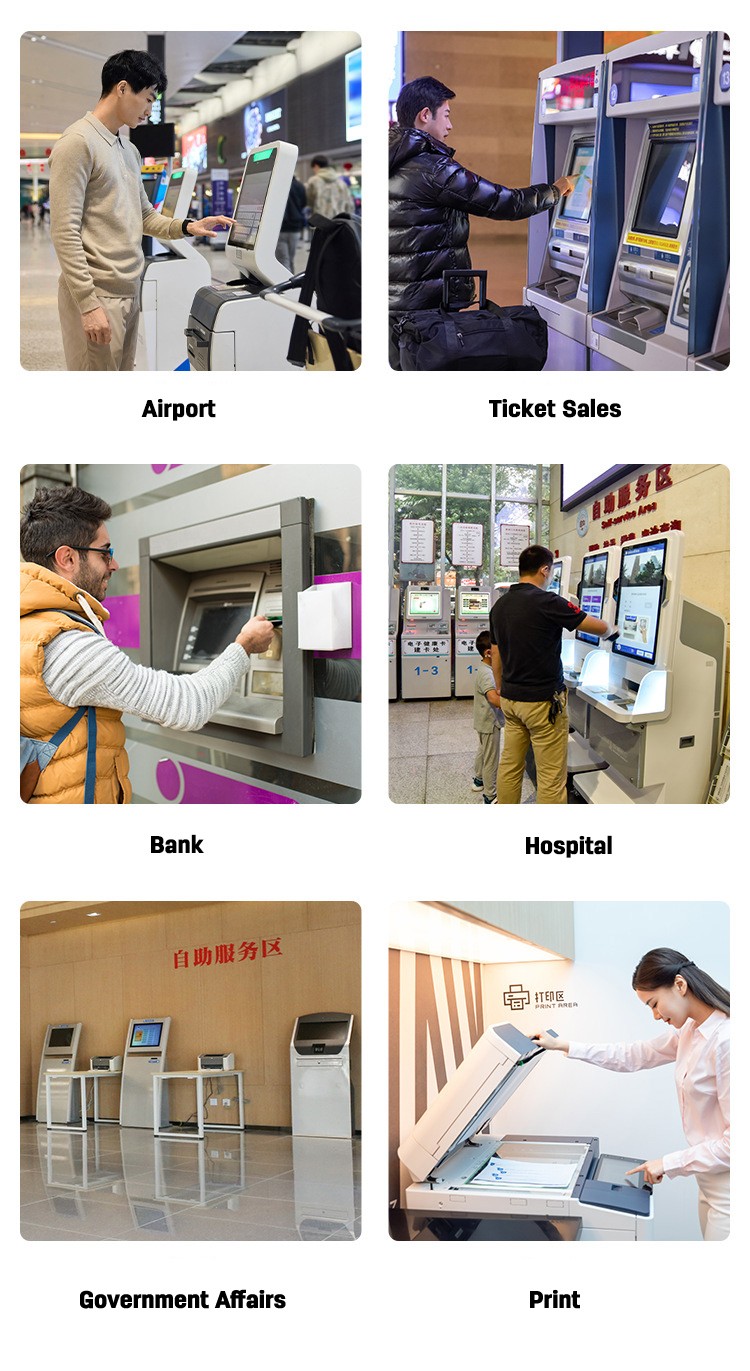

Application Scenarios
Hospital workstations, shopping malls, banks, hotels, government affairs, airports, subways, schools, ticket sales,Payment and number inquiry, social security, police affairs, printing and processing of certificates, office books, visitors
| Model NO. | self service payment kiosk |
| Screen Type | Capacitive |
| Resistive Touch Screen Type | Digital |
| Customized | Customized |
| Panel Type | Commericial Auo Original LCD Panel |
| External Functions | POS Credit Card Terminal Installation Bracket |
| Touch Type | Capacitive Pcap Touch Screen |
| IPS | IP65 Rate , Outdoor Waterproof |
| Motherboard | PC , I5 7g Windows 10 and OEM ODM |
| RAM | 8 DDR |
| SSD | 128 SSD |
| Shell Case | Silver, Outdoor Tiger Brand Powder Coating |
| Transport Package | Corton Box, Wooden Box |
| Specification | 21.5 inch PCAP touch self service payment kiosk |
| Trademark | LCDKIOSK |
| Origin | China |
| HS Code | 8471494000 |
| Production Capacity | 50000 |
| Packaging & Delivery | |
| Package Size | 160.00cm * 120.00cm * 65.00cm |
| Package Gross Weight | 75.000kg |
Main Board | Android | Windows |
CPU | RK3288: Quad core 1.8GB | J1900:: Quad core 2.0GHz |
OS Support | RK3288: Android 9.0 | Windows 7/ 10/11, Linux |
Display | ||
Display | 15.6" LED TFT protrait | 15.6" LED TFT protrait |
Brightness | 250 nits | 250 nits |
Resolution | 1366*768 (Option: 1920*1080P) | 1366*768 (Option: 1920*1080P) |
Touch Screen | Capacitive touch screen | Capacitive touch screen |
Tilting Angle | 35-90 Degree | 35-90 Degree |
RAM& Storage | ||
RAM | 2G | 4G/ 8G |
SSD | 16G | mSATA 64G/ 128G/ 256G SSD |
SATA Slot | No | 1 x mSATA Slot |
I/O Ports | ||
Serial | 1x COM | 1 x COM |
USB | 5 x USB 2.0 (External), | 5 x USB 2.0 (External), |
LAN | 1 x RJ-45, Giga LAN, 100 Self-adaption | 1 x RJ-45, Giga LAN, 100 Self-adaption |
VGA | No | 1 x DB-15, Female |
DC | 1 x +12V 5A | 1 x +12V 5A |
Audio Jack | 1 x Line Out, 1 x MIC In,1 x Internal Speaker | 1 x Line Out, 1 x MIC In,1 x Internal Speaker |
Wifi | IEEE802.11b/g | (option) |
Card slot | 1 x SIM card | No |
Printer | 80mm thermal receipt printer | 80mm thermal receipt printer |
Scanner | Support 1D+2D code | Support 1D+2D code |
Optional | MSR, | MSR, |
Stand | ||
Stand design | Desktop/ Wall-mounted | Desktop/ Wall-mounted |
Packing | ||
Packing size | 36*32*67cm | 36*32*67cm |
Volumn weight | 15.5 kg | 15.5 kg |
ORDERING FROM US
At lcdkiosk, Our goal is to make your experience as smooth and hassle-free as possible, ensuring that you receive a high-quality product that meets your expectations. From project evaluation to after-sales service, we ensure that each step is carefully executed to meet your requirements. Here are the steps to follow:
Step 1
Project Evaluation (1-2 days)
The first step is to evaluate your project requirements and expectations. We have a dedicated team that will work closely with you to understand your needs, answer any questions you may have, and provide expert guidance. This evaluation process typically takes 1-2 days to gather all the necessary information.
Step 2
Sample Production (7-30 days)
Once the project evaluation is complete and payment is received, our skilled production team will manufacture samples according to your specifications. This process may take anywhere from 7 to 30 days, depending on the complexity of the product and the availability of materials. We prioritize maintaining high-quality standards during this phase.
Step 3
Confirm the Product and Pack It (1-2 days)
After the sample is made, we support inspection. We encourage you to check the samples thoroughly, Once the product design and quality meet your expectations, we will proceed with packing the final order. This step generally takes 1-2 days to ensure that everything is securely packaged.
Step 4
Shipping (7-45 days)
When the product is packed and ready for shipment, We offer a variety of shipping options to meet your needs. If you’re in a hurry, air shipping is the fastest but more expensive option, taking just 7-10 days. Sea shipping is the most economical but takes longer, at 30-45 days. We will provide you with a more accurate estimate based on your specific destination and any customs procedures involved.
Step 5
After Service
Our commitment doesn’t end with the delivery of your order. We value our relationship with customers and offer comprehensive after-sales service. If you encounter any issues or have any questions regarding the product, our dedicated support team is ready to assist you. We prioritize customer satisfaction and strive to address any concerns promptly and effectively.
