Digital Signage

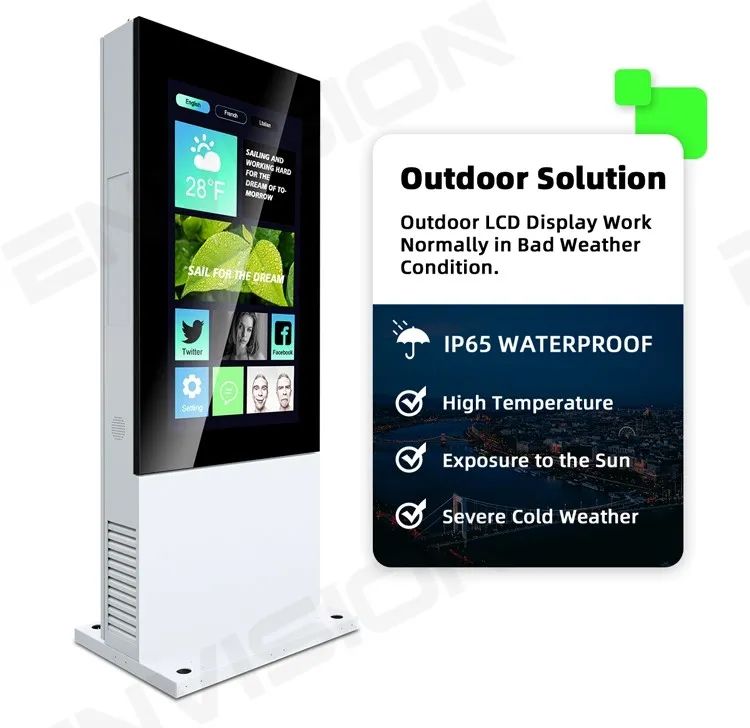

Outdoor digital signage
Technique Parameter for LCD Panel:
1. Panel size 21.5",27",32",37",43",49'',55'',65'', 75'', 86'', 98",options LED backlight, All New A+ panel
2. Display area(mm)/mode: base on the screen size

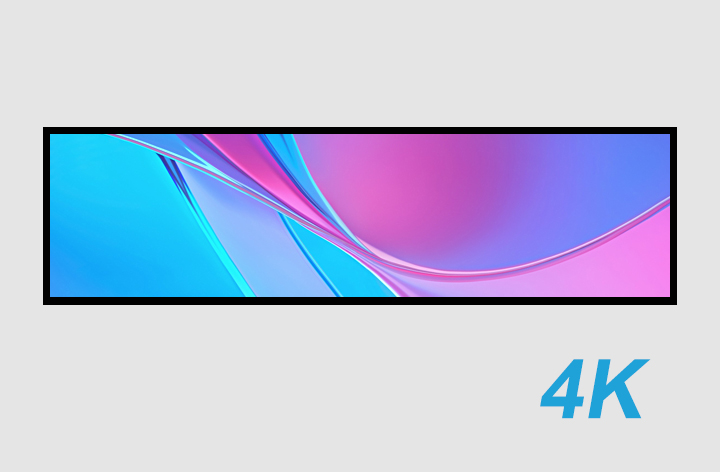

3. Resolution: 1920X1080 or 4K
4. Display color: 16.7M
5. Pixel Pitch(mm): based on screen size to change
6. Brightness (nits) 2500-5000nits or above for selection
7. Contrast 1100:1 (Dynamic Contrast:100000:1)
8. Visual angle 178°/178°
9. Response time 12ms
10. Life(hrs) 60,000(hrs)
11. With screen sensor to check screen display status by system.
With touch or without touch options
Parameter Description of Outdoor Digital Signage

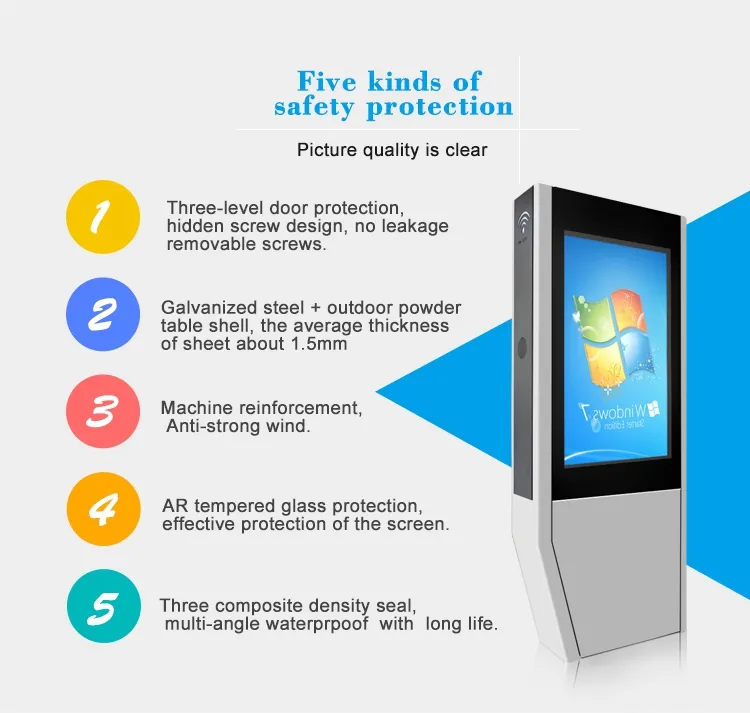

Security Configuration
1. Power management: Moudule Power control indivadually with Circuit Breaker
2. Environment camera (if needed, addtional costs: $30)
3. Filter block percentage detection sensor.
4. Door open sensor
5. Shock sensor and warning with photos upload.
Outershell:
1. IK10 and IP65 level outer-shell is made by galvanized sheet..

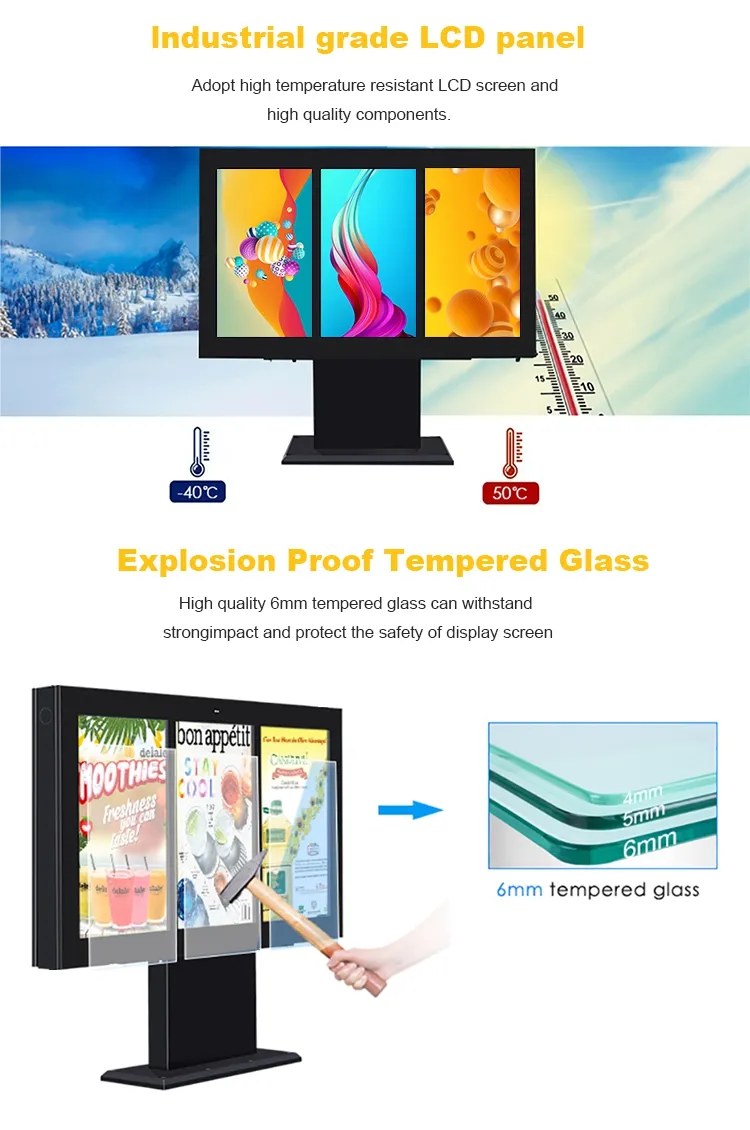

2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outershell,vandal proof.
Android OS 7.1.2 Solution/windows OS options
1.CPU: Quad core Cortex-A17, 2.0GHz/Other option
2.GPU: ARM Mali-T764 GPU/Other option
3.DDR: DDR3 2G/4G/Other
4.ROM NAND FLASH: 8G/16G/Other
5.Exteral ROM Support up to 32G bytes SD card
6.WiFi Support 802.11b/g/n WiFi module
Outdoor OMC system (outdoor maintenance and management cloud software system):
1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3.Touble shooting by software included.
4.Use softwae Remote Check key working performance by Group
5.Unnormal work alarm generation.
Control interface supporting:
1. RS232 Envision provide API and instruction protocol.
2. TCP/IP Envision provide technical supporting.

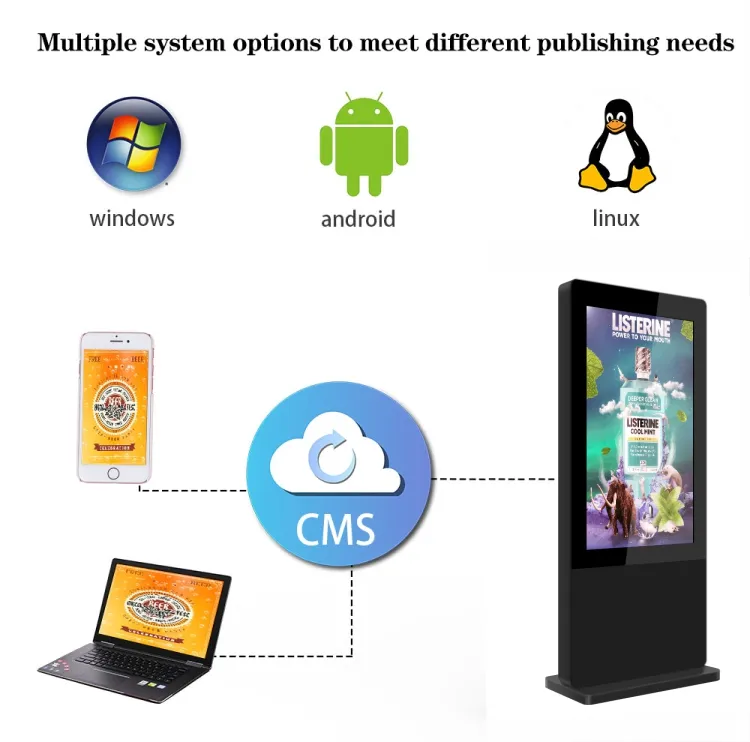

Cloud service supporting:
1.CMS
2.OMC
3.Envision can support to help Customer to setup their own server.
Working Environment:
Temperature
Working temperature: -10°C~50°C for air flow cooling system, -30°~65° for air conditioning cooling system
Power supply
Industiral High level Power moduel AC100~240V 50 /60 Hz

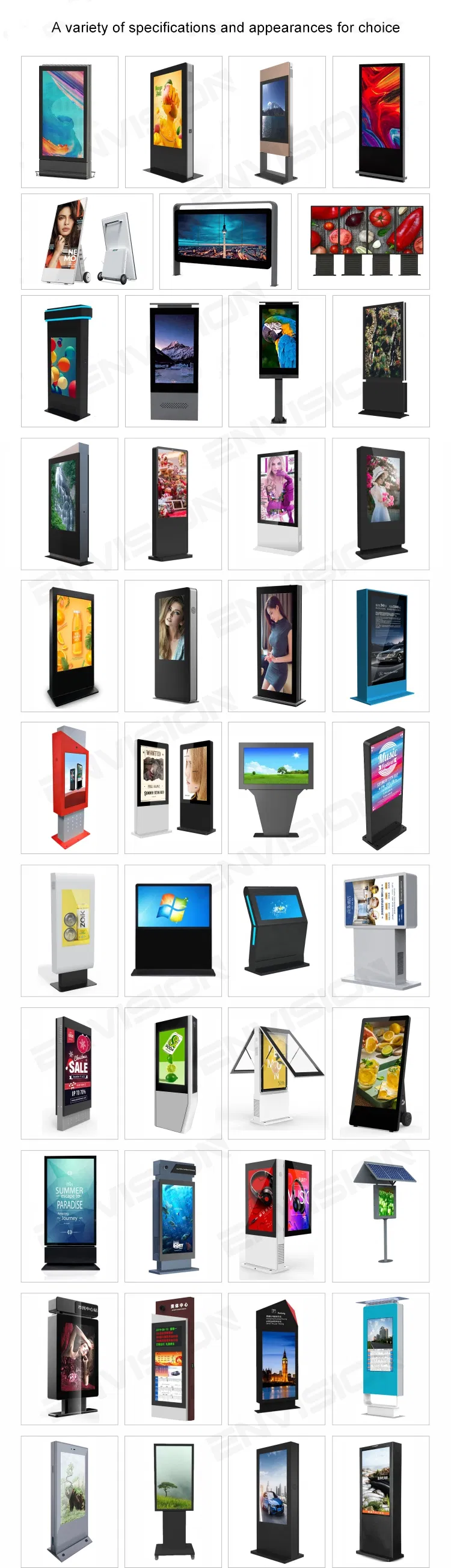

Examples of Outdoor Digital Signage Applications
SPECIFICATION & PARAMETER
|
Certifications
Company profile
Package's Details
| ID | Accessory | Function Description |
| 1 | Tempered Glass | The most critical component of outdoor digital signage is tempered glass, designed to withstand harsh weather conditions and provide essential protection for the display. With strong resistance to impact, scratches, and temperature fluctuations, tempered glass ensures the signage's service life and visual clarity. |
| 2 | LCD Module | The LCD (Liquid Crystal Display) module is a key component of outdoor digital signage systems, responsible for displaying the content and visual effects that enterprises aim to convey to the audience. Composed of a panel with millions of tiny pixels arranged in a grid, this module allows pixels to alter their properties to create diverse colors and display images or text. |
| 3 | Waterproof Enclosure | The waterproof enclosure serves as an additional protective layer against water, dust, and other environmental factors. Surrounding the entire signage system, it shields the system from external influences. This robust casing ensures the system's service life by preventing potential damage. |
| 4 | Cooling Fan | To prevent excessive heat generated by prolonged use or external conditions, outdoor digital signage is equipped with a cooling fan. This component actively regulates the system temperature by expelling hot air and circulating cooler air. Proper cooling prevents overheating, guaranteeing consistent performance. |
| 5 | Display Power Supply | As the energy core for the advertising machine's visual presentation, the display power supply delivers stable and adaptive power to the display by precisely regulating voltage and current. This ensures clear images, true colors, and smooth dynamics, avoiding issues like flickering, blackouts, or color distortion caused by unstable power supply—thereby providing reliable support for high-quality advertising content display. |
| 6 | Fan Power Supply | Dedicated to providing stable power for the advertising machine's cooling system, the fan power supply continuously drives the cooling fan to expel heat generated during operation, effectively reducing internal temperature. This prevents component aging, performance degradation, or even failures caused by high temperatures, ensuring the advertising machine maintains an optimal operating environment during long-term continuous use. |
| Motherboard Power Supply | The motherboard power supply acts as the energy hub for the advertising machine's core computing and control functions, supplying stable and pure power to critical components on the motherboard (such as the processor, memory, and chipset). It maintains stable operation of system data processing, instruction transmission, and functional coordination, ensuring the advertising machine responds orderly to all functions—serving as the core energy support for its normal operation. | |
| 7 | Lightning Arrester | During inclement weather or power grid fluctuations, the lightning arrester acts as the "safety guardian" of the advertising machine. Through professional lightning protection design and overvoltage protection mechanisms, it quickly captures and discharges transient high-voltage currents (such as lightning strikes and surges) to the ground, effectively preventing irreversible damage to the advertising machine's internal circuits and components. This significantly enhances the equipment's safety and reliability in complex power environments. |
| 8 | Circuit Breaker | As the intelligent "protection gate" of the advertising machine's circuit system, the circuit breaker monitors the current in real time. When abnormal conditions (such as overload or short circuit) cause the current to exceed the rated threshold, the circuit breaker trips automatically to cut off the circuit, preventing risks like line overheating or fire caused by abnormal current. It also facilitates fault diagnosis and repair, serving as a vital defense for the advertising machine's power safety. |
| 9 | Fan Speed Controller | The core function of the speed controller is to precisely regulate the air volume and speed of fans and air conditioners during motor operation, thereby achieving intelligent control of equipment rotation speed. When the ambient temperature is too high, the controller automatically activates the wind speed enhancement mechanism to accelerate heat dissipation by increasing air volume; when low temperatures cause the display to malfunction, it triggers the heating function to ensure the display operates stably at an optimal temperature. |
| 10 | Motherboard | The motherboard is the central circuit board connecting and coordinating all internal components of the digital signage system. Acting as the control center, it processes data and manages the equipment's overall functions. The reliability and performance of the motherboard are crucial for seamless operation. |
| 11 | Air Conditioner | To cope with extreme temperature variations, outdoor digital signage systems are typically equipped with air conditioners. This component maintains the optimal operating temperature, protecting internal components from overheating or excessive cold. The air conditioner ensures consistent performance and extends the signage's service life. |
| 12 | Waterproof Housing | The waterproof Housing serves as an additional protective layer against water, dust, and other environmental factors. Surrounding the entire signage system, it shields the system from external influences. This robust casing ensures the system's service life by preventing potential damage. |
What Are Outdoor digital signage Used For?
Outdoor digital signage in these applications offers numerous benefits, including flexibility in content management, targeted messaging, real-time updates, improved customer engagement, and cost-effective advertising. The adaptability and versatility of digital signage make it a valuable tool for various industries seeking to enhance communication, navigation, and customer experiences in outdoor environments.
Outdoor Wayfinding Display
Outdoor wayfinding displays are used to provide directions and navigation assistance in public spaces such as airports, malls, and campuses. Digital signage can display interactive maps, real-time updates, and customized directions, making it easier for visitors to navigate unfamiliar areas efficiently.
Outdoor Advertising Display
Outdoor advertising displays leverage the power of digital signage to deliver dynamic and eye-catching advertisements in high-traffic outdoor locations. These displays can showcase vibrant visuals, videos, and targeted messages, capturing the attention of passersby and effectively promoting products, services, or events.
Bus Stop Digital Signage
Digital signage at bus stops enhances the passenger experience by providing real-time bus schedules, route information, and announcements. It can also display emergency alerts, weather updates, and promotional content, keeping commuters informed and engaged while waiting for their buses.
Outdoor Digital Menu Board
Outdoor digital menu boards are commonly used in fast-food restaurants, drive-thrus, coffee, and outdoor dining areas. These boards allow for easy menu updates, dynamic pricing displays, and visually appealing product showcases. They help restaurants promote specials, upsell items, and enhance customer convenience.
Shopping Mall Outdoor Digital Signage
Outdoor digital signage in shopping malls serves multiple purposes. It can advertise upcoming sales, highlight new stores or products, and provide real-time event information. Additionally, it can offer interactive maps, facilitate wayfinding, and create engaging experiences for shoppers.
Attraction Digital Signage
Digital signage is widely used in tourist attractions and theme parks to provide information, entertainment, and enhance visitor experiences. It can display ride wait times, show schedules, directions, interactive games, and promotional content, ensuring visitors have an enjoyable and well-informed visit.
