Focus on digital signage,touch screen,interactive kiosk,outdoor kiosk.
NO PROJECT IS TOO SMALL FOR OUR EXPERTISE
NO PROJECT IS TOO SMALL FOR OUR EXPERTISE
15 inch LED LCD screen (1024 * 768)/215 inch brand new LCD screen (1920 * 1080)
* MOQ is 1 unit for both our standard LCD product and OEM/ODM product.

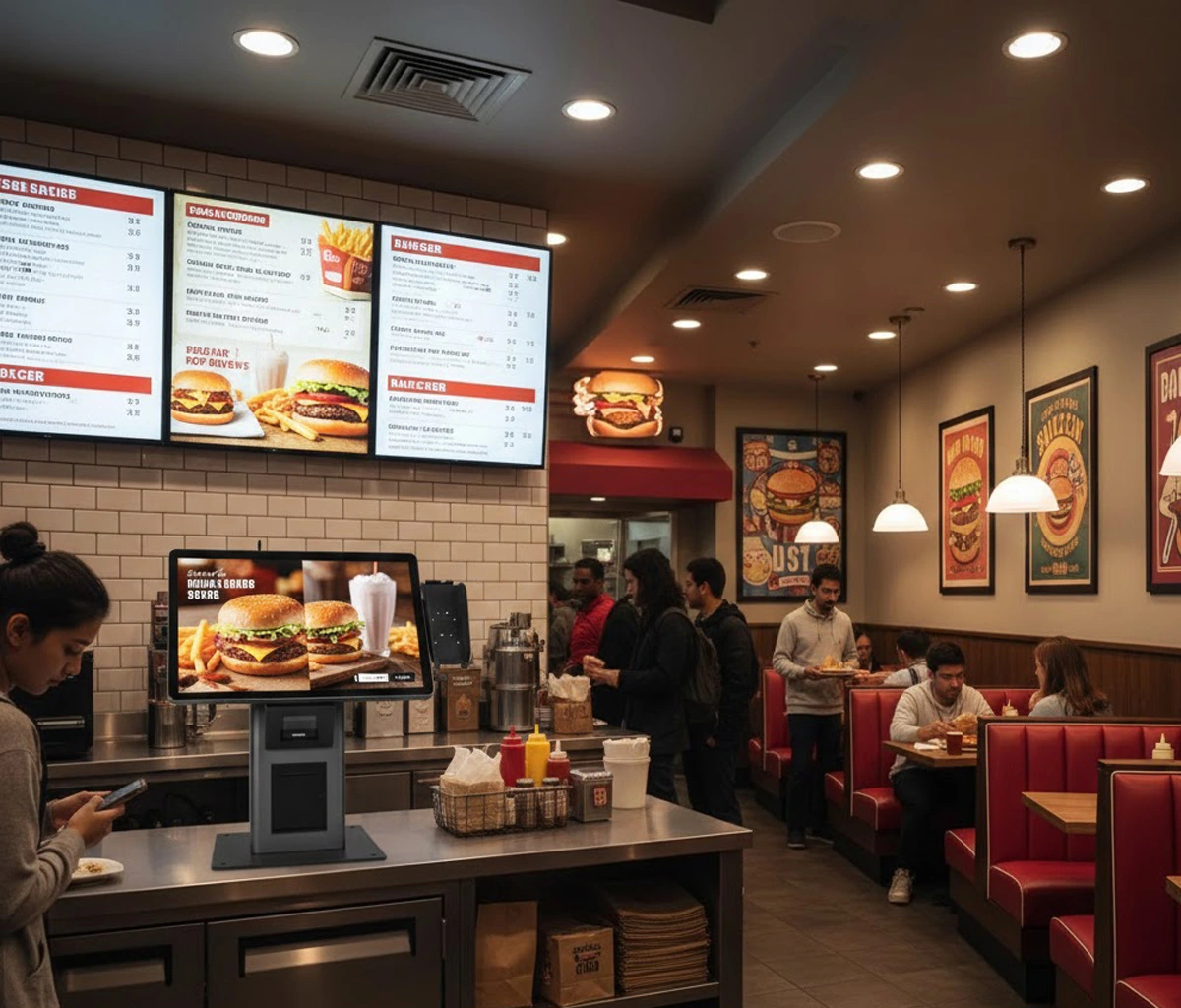

If you’re running a quick-serve restaurant, then speed and accuracy are your best friends. Taking fast, accurate orders means you can boost turnover and spend less time correcting avoidable errors. When you empower your customers to place their own orders through an Android or iPad Self-Service Kiosk, not only are they less likely to make mistakes, but the simple user interface makes the whole ordering process super-fast, intuitive and efficient!

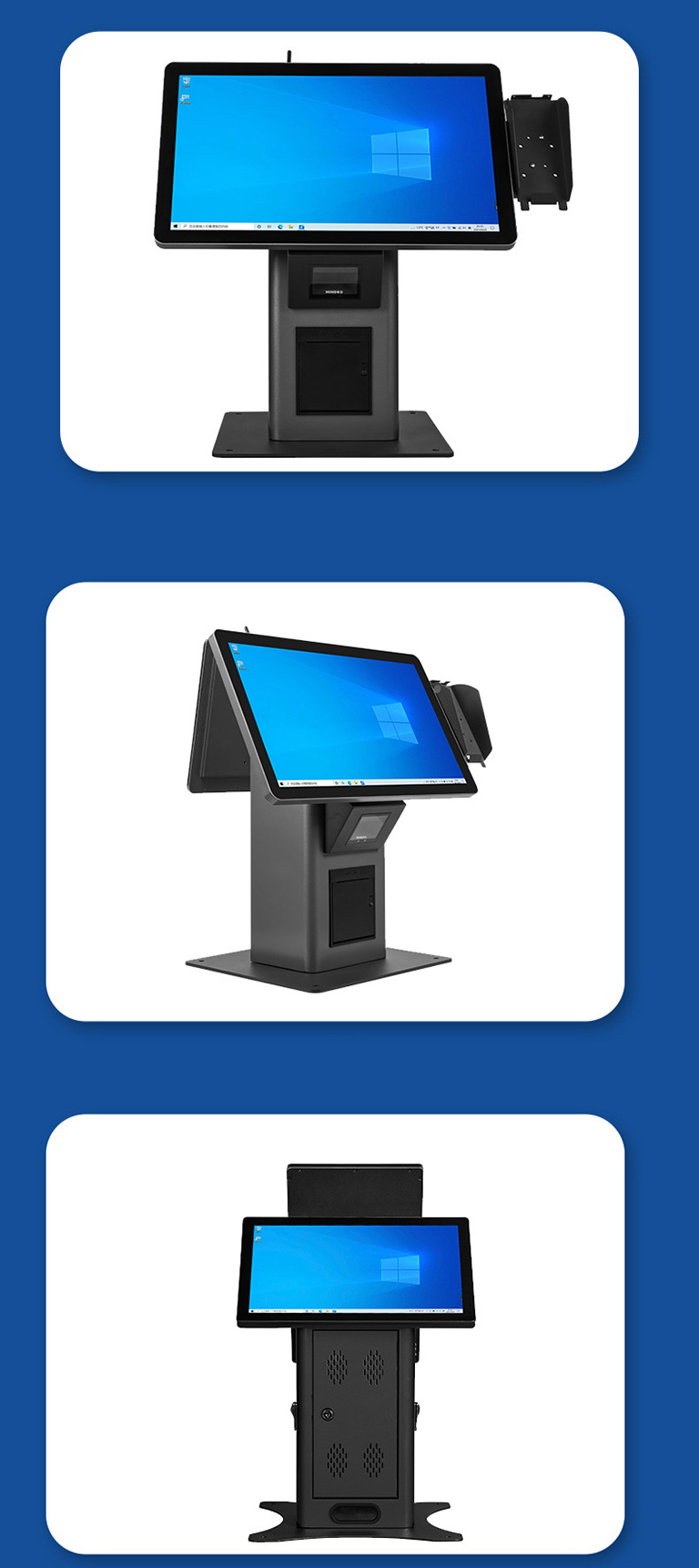

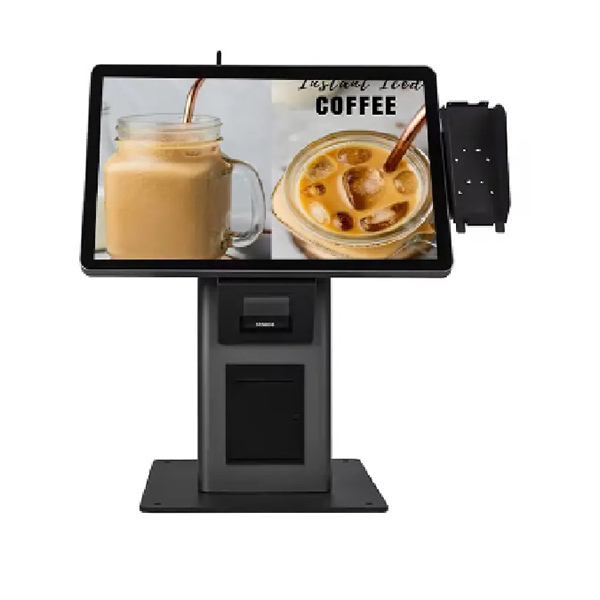

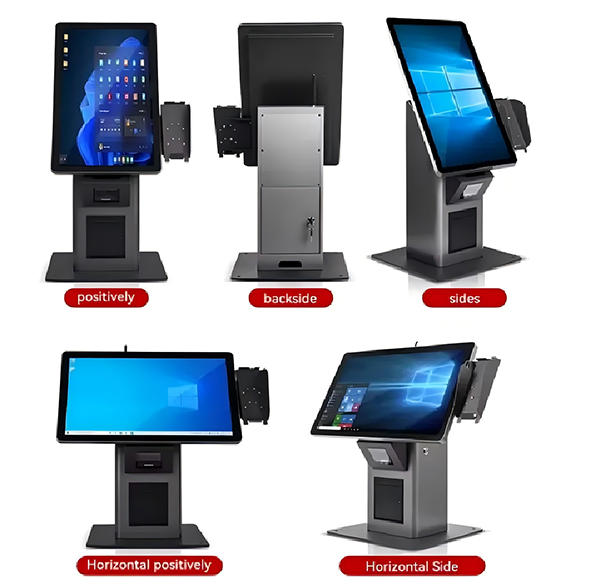

Self Payment Kiosk 21.5 Inch Poe Model Pcap Capacitive Screen Built-in Thermal Printer/Scanner Self Service Payment Payment Kiosk We can provide customize service , We're able to make any customize shells case Kiosks, Self-service payment kiosk Mount customize parts Like NFC reader printer, QR code Scanner, RFID + Card reader,Face Scanner,Exit station Car parking kiosk.
Name: Self service ordering kiosk
Display screen: 15 inch LED LCD screen (1024 * 768)/215 inch brand new LCD screen (1920 * 1080)
Touch screen: 10 point industrial grade capacitive touch screen
Printer: 80mm automatic paper cutting printer
Scanner: One Dimensional&Two Dimensional High Performance Scanners
NFC: 13.56MHz non-contact type
Camera: binocular/monocular
Floor standing column: segmented floor standing column
POS bracket: standard bracket or customized according to customer needs
| Model NO. | Self service ordering kiosk | Type | Touch Screen Panel AD Player |
| Touch Screen Type | Capacitive | Screen Technology | LCD |
| Interface Type | HDMI,Poe | Remote Control | Without Remote Control |
| 0S | Windows | Customized | Customized |
| Optional Peripherals | VFD Customer Display,Printer, Cash Box,Scanner,W | CPU | Intel Core 4J4125 Motherboard |
| Memory Support | Ddrii1066/1333*14GB | Hard Driver | 64GB |
| Home Screen LED Panel Size | Boe,Auo Original Panel,a Level,21.5Inch TFTLED | Touch Screen | 10-Point Capacitive Touch Screen |
| View Angle | Horizon:170;Vertical:160 | Warranty | 1 Years Kiosk Quality Warranty |
| After-Sales Service | Provide | Customize Service | Provide |
| Transport Package | Safety Packaging and Wooden Box for Transportation | Specification | 21.5 inch self service food ordering kiosk POE |
| Trademark | LCDKIOSK | Origin | China |
| HS Code | 8471494000 | Production Capacity | 50000 |
| Android version | windows/Linux version | |
| CPU+OS | RK3288+Android 7 | Celeron +Windows 10 |
| RK3328+Android 9 | Core i3+Windows 10 | |
| RK3568+Android 11 | Core i5+Windows 10 | |
| Memory | 2+8 GB(RK3288) | 4+128GB(standard) |
| 2+16GB(RK3328,RK3568) | custom RAM+SSD | |
| AND | 100/1000 Mb/s | 100/1000 Mb/s |
| Wi-Fi | 802.11b/g/n | 802.11 b/g/n |
| Bluetooth | yes | no |
| NFC | yes | yes |
| Interface | 1×HDMI | 1×HDMI |
| ×RJ45 | 1×RJ45 | |
| 1×Audio | 1×Audio | |
| 1×SD Card | 1×VGA | |
| 5×USB,2×USB HOST | 4×USB |
| Common Parameters | |
| Display | 15,6",1920×1080 px,IPS,250 cd/m2,1200:1,178°/178°(H/V) |
| 21,5",1920×1080 px,IPS,250 cd/m2,1200:1,178°/178°(H/V) | |
| Touch Type | 10 points real PCAP touch screen |
| Glass on screen | 3mm tempered glass |
| Shell material | Aluminum+Metal |
| Power Consumption | 90-120 W |
| Life Time | >50000(hours) |
| Scanner | 1D/2D scanner with NFC reader |
| Printer | 80 mm thermal printer with cutter |
| operation temperature | 0-50℃ |
| storage temperature | -20-60℃ |
| Place of Origin | Guangdong,China |
| Brand Name | LCDKIOSK |
| Function | SDK |
| Item Name | self service kiosk |
| Warranty | 1 Years |
| Service | OEM/ODM/OBM accepted |
| Function | self order and pay,display menu |
| Power supply | 12V/5A external power adaptor |
| Application | indoor for multiple industry(Retail Restaurant Hospital) |
| Touch Panel | 10 Points Multi-capacitive Touch |
| Optional Parts | Card reader IC/NFC/RFID/QR Scan/Printer |
| Operating System | Windows or android |
| Installation | Wall mounted/Floor standing of self order kiosk |
LCDkiosk’s kiosk tells what is self-service kiosk with details and techs, helping you shape the landscape of customer service and business operations. By leveraging the power of self-ordering kiosk systems, businesses can unlock new opportunities for growth, efficiency, and customer engagement in an increasingly digital world.
At lcdkiosk, Our goal is to make your experience as smooth and hassle-free as possible, ensuring that you receive a high-quality product that meets your expectations. From project evaluation to after-sales service, we ensure that each step is carefully executed to meet your requirements. Here are the steps to follow:
Step 1
Project Evaluation (1-2 days)
The first step is to evaluate your project requirements and expectations. We have a dedicated team that will work closely with you to understand your needs, answer any questions you may have, and provide expert guidance. This evaluation process typically takes 1-2 days to gather all the necessary information.
Step 2
Sample Production (7-30 days)
Once the project evaluation is complete and payment is received, our skilled production team will manufacture samples according to your specifications. This process may take anywhere from 7 to 30 days, depending on the complexity of the product and the availability of materials. We prioritize maintaining high-quality standards during this phase.
Step 3
Confirm the Product and Pack It (1-2 days)
After the sample is made, we support inspection. We encourage you to check the samples thoroughly, Once the product design and quality meet your expectations, we will proceed with packing the final order. This step generally takes 1-2 days to ensure that everything is securely packaged.
Step 4
Shipping (7-45 days)
When the product is packed and ready for shipment, We offer a variety of shipping options to meet your needs. If you’re in a hurry, air shipping is the fastest but more expensive option, taking just 7-10 days. Sea shipping is the most economical but takes longer, at 30-45 days. We will provide you with a more accurate estimate based on your specific destination and any customs procedures involved.
Step 5
After Service
Our commitment doesn’t end with the delivery of your order. We value our relationship with customers and offer comprehensive after-sales service. If you encounter any issues or have any questions regarding the product, our dedicated support team is ready to assist you. We prioritize customer satisfaction and strive to address any concerns promptly and effectively.
