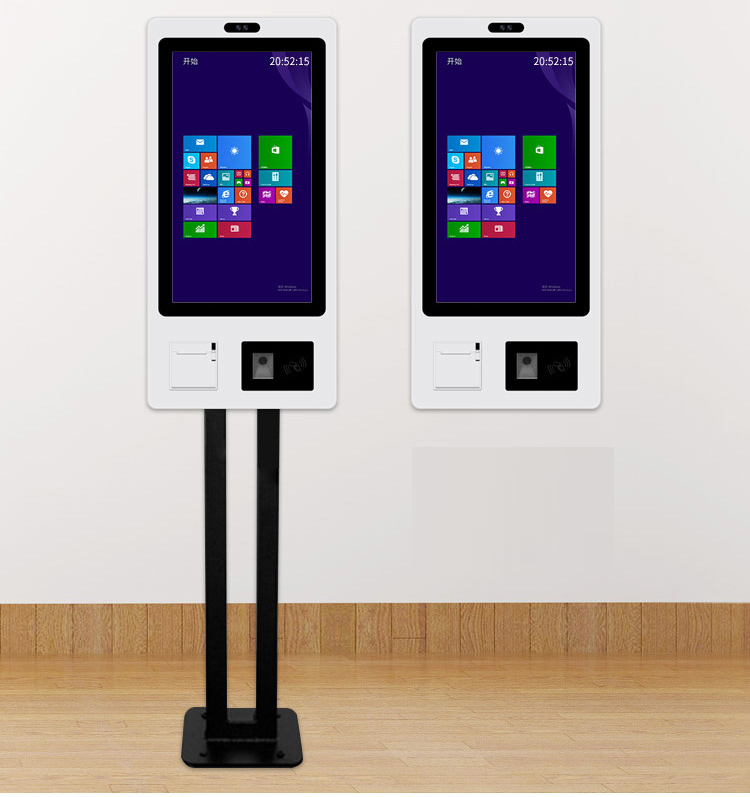

21.5 inch POE Model IP65 rates Outdoor waterproof Fans coolings Low Noise Self service kiosk
* MOQ is 1 unit for both our standard LCD product and OEM/ODM product.
21.5 inch POE Model IP65 rates Outdoor waterproof Fans coolings Low Noise Self service kiosk
Face Recognition
IC/ID Swiping
HD Full View
QR Code Scanner
Information Display
Small Ticket Printing
Package Size:100.00cm * 80.00cm * 65.00cm
Package Gross Weight:60.000kg
Cabinet Surface Treatment:Imported automotive metal baking paint, metal surface gloss paint, rust proof, anti magnetic, and anti static:streamlined design,professional CNC machine tool
Production Fine workmanship, and customizable hardware functions, around 15 days one units sample Batch of order 50-100 take 20 days the production time.1000 units take 30-50 days.
| Product name | Touch query one machine | Resolution | 1280×1024 |
| Model | WX-G2153 | Screen ratio | 0.16875 |
| Branding | LCDKIOSK Technology | Contrast | 1000:1 |
| screen size | 21.5 inches | color depth | 16.7 meters |
| Appearance material | Metal cold rolled steel plate | response time | 5ms |

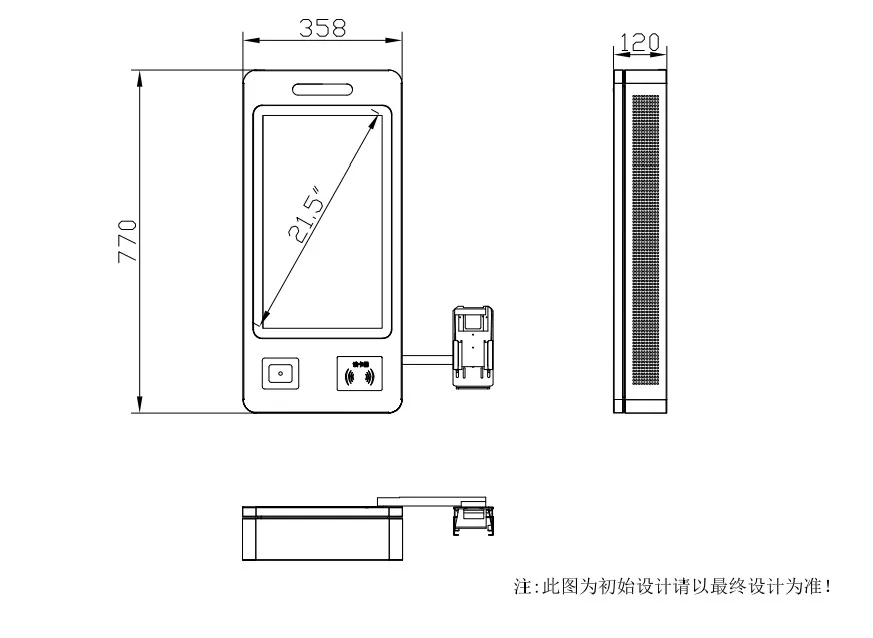

| Physical dimensions | 520mm×367mm×1440mm | display luminance | 500cd/m² |
| Product weight | 23KG | Backlightlife | 50000H |
| Product Certification | ccC/CE | Interface | VGA |
| Touch screen | Projective capacitive screen | Touch points | Multi touch |
| Touch interface | USB | Touch count | More than 60 million times |
| surface hardness | >6H | Touch screen mode | Fingers or dedicated touch pens |
| Motherboard | 19014P-C | Transmittance | 85+5% |
| Memory | 4G(2G/8G optional) | CPU | J1900 Quad Core 2.0GHz |
| Network card | Built in gigabit network card | Hard drive | 64G(32G/128G/optional) |
| System | Default Win7 system(32-bit) | Graphics card | Integrated Intel HD |
| Model NO | 21.5 self service kiosk Customize model | Currency Detector Principle | Laser Detection |
| Queue System Usage | Outdoor | Queue System Display Function | Graphic and Animations Both |
| Queue System Type | nformation Release | Data Collector Type | Rfid Data Acquisition |
| Data Collector Signal Transmission | Wireless | Data Collector Operating System | Windows Mobile |
| Brightness | 2000-3000 Nits | Touch Function | Pcap Touch Screen 10 Points |
| Enthernet | Assemble with Poe Module | Operating System | Windows710gen |
| RAM | 16g DDR4 | Hard Disk | 128 SSD |
| Customize Service | Available,Can Be Customize Parts and Motherboard | After-Sales Service | Available |
| Warranty Period | 1 Years Warranty Provided, Optional 3-5Years | After Warranty Period | Providing Technical Support, Parts,Componentts |
| Logo Service | We Can Be with Your Company Logo | Color | Mat Black,Other OEM |
| Transport Package | Carbon+Wooden Box | Specification | 21.5 inch POE Model IP65rates Outdoor waterproof |
| Trademark | LCDKIOSK | Origin | China |
| HS Code | 8471494000 | Production Capacity | 100000 |
| Components | Details | |
| PC System | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD/SSD | 1TB, SSD 128G/256G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LCD Monitor | Screen Size | 17 inch/22 inch ( optional from 8inch to 65inch) |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch Screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Receipt Printer | Interface | High Speed USB |
| Resolution | 4800*1200 maximum | |
| Printing speed | 4.8 ipm | |
| Width | 58 /80 /112 mm | |
| Length | Customizable | |
Webcam
| Resolution | 1280*720 |
| Pixel | 8000000 | |
| Adaptive Resolution | 1280*720 | |
| Interface | USB 2.0 | |
| Driver | No | |
| Encrypting Pinpad | Keylift‐span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | IP65 | |
| Operating Temperature | 0° C to 40° C | |
| Motorized Card reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
| Magnetic Head Life | 500,000/min | |
| 500,000/min | 300,000/min | |
| Power Voltage | DC 24V±5% | |
| Digital Signature pad | Size of the induction zone | 4*3 inch |
| The precision of the digital pen | 0.25 mm (0.01 inch) | |
| Digital board resolution | Digital board resolution | |
| Digital pen induction height | 15 mm maximum | |
| Reading rate | 100 pps (points per second) | |
| Interface | Interface | |
| Others | LED status indication | |
| Air conditioning | Input voltage | 48 V |
| Working temperature | -30℃ to 70℃ | |
| Way | Air to air | |
| Other | 3 fans | |
| Alarm system sensor / IO control board | Function | Door alarm sensor with enternet function, SIM,SMS,CALL |
| Speakers | Features | Dual channel amplified speakers for Stereo ,8Ω 5W |
| Digital Power Supply | AC input voltage range | 100~240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100~240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| Free Standing Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Package | Security Packing method with bubble foam and wooden case |
