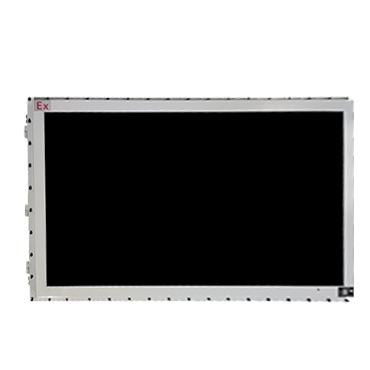

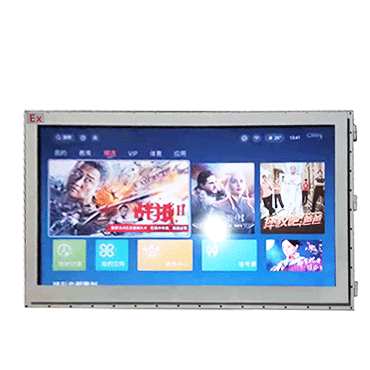

Industrial explosion-proof display
|Zone||Zone 0, Zone 1, Zone 2||Environment||Gas and dust|
|Brightness||300cd/m²/600cd/m（customizable）||Explosion-proof mark||Ex nR IIC T6 GC/Ex tD A22 IP66 T80（customizable）|
1, explosion-proof form of the use of flameproof material, compound design, safe and reliable products;
2, the shell adopts flameproof structure design, high strength aluminum alloy material and integrated processing molding, solid and reliable;
3. Transparent parts are also made of white plane explosion-proof tempered glass with high strength and high transmittance;

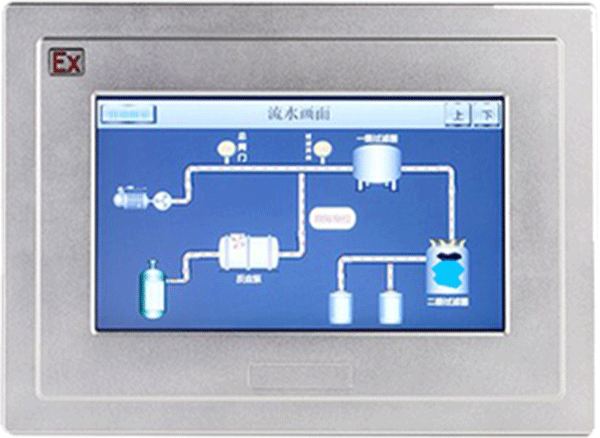

4, according to the demand, can be configured with safety explosion-proof touch screen, can also be equipped with other parts;
5, explosion-proof touch screen has high efficiency and sensitive, can be safely touched in explosive dangerous places;
6, the touch pad can be treated with anti-static, effectively avoid the risk of electrostatic spark ignition;
7. Diversified design of product structure can meet the needs of different people.
8, the screen size range can be from 12 "to 22", to meet the needs of different enterprises;
9, double explosion-proof certification of gas and dust, more widely applicable places;
Zone 0, Zone 1, Zone 2
Category 1、Category 2、Category 3
1、 Product features
It can realize on-site monitoring in explosion-proof areas, and high-quality LCD panel VGA signal input or composite video signal input plane board design can fully save space. The lightweight shape is easy to handle and use. The viewing angle can be adjusted according to the usage habits. The protection grade is IP65.
2、 Product description
Explosion-proof display is a special equipment designed for explosion-proof industrial television system. It changes the situation that the display can only be placed in the control room. It can also provide users with clear and intuitive monitoring images in dangerous explosion-proof areas, greatly improving the flexibility of system configuration
The explosion-proof monitor adopts a high-quality 17-inch LCD panel with a resolution of 1280x1024 and a dot pitch of 0.264mm. 220VAC voltage operating range.
It has VGA interface and standard video interface, and supports NTSC and PAL systems.
The display window is made of special tempered flat glass, which ensures the display effect of the picture while being durable. The equipment can work stably for a long time under the temperature of - 20 ℃ to+60 ℃.
Explosion-proof display is mainly installed directly on the desktop or platform, and can also be lifted by special support.
